BETTA Fluid Control Co., Ltd.

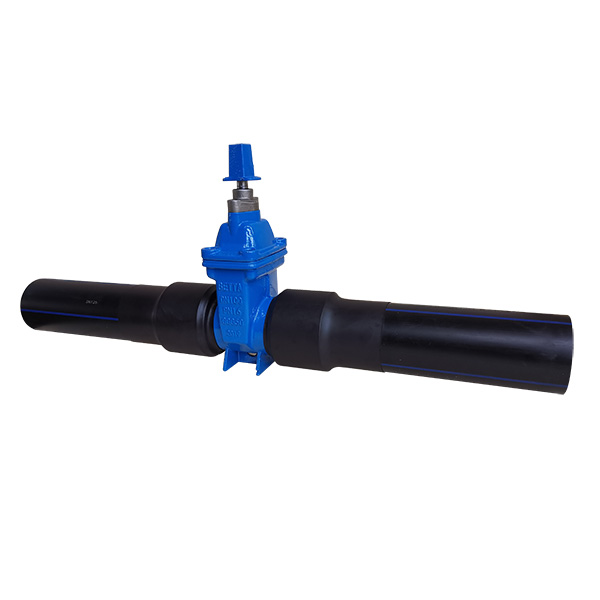

Gate valve with integral polyethylene tail ends for PE pipes. For drinking water and neutral liquids to max. 40℃

ASZ82X1-PE-16Q: Connection; Polyethylene Tail Ends; Material; Ductile Iron; DN; DN90~315; PN; PN16; Closing Direction; Clockwise to Close; Anti-Clockwise to Close

Test/Approvals:

Hydraulic test according to AS2638.2-2011
Seat: 1.1PN, Body: 1.5PN
Closing torque test to AS2638.2 Table5.1
AS2638.2 Registration No. 25731
WaterMark Registration No. 25731

Standards:

Designed and certified according to AS2638.2-2011
Sockets with polyethylene tail ends for Polyethylene Pipes PE100

Features:

Ductile iron grade of BS500-7 body and bonnet for high strength and impact resistance
Sockets with drinking water approved polyethylene tails on both ends for PE100 pipes
Polyethylene against polyethylene for quick HOT-MELT connection
Wedge fully vulcanized with drinking water approved EPDM rubber and equipped with slide shoes to provide smooth operation during opening and closing
Wedge and body guide rails ensure stable operation
Stainless steel 431 stem and rolled threads for high strength
Removable gland flange for O-ring stem seals replaceable under allowable working pressure
Straight through full bore
Low operating torque
Fusion bonded epoxy coating to AS4158&4020, WRAS, AS, DIN approved
Body/bonnet bolts sealed with hot melt
All fasteners of S.S.316 for corrosion resistance

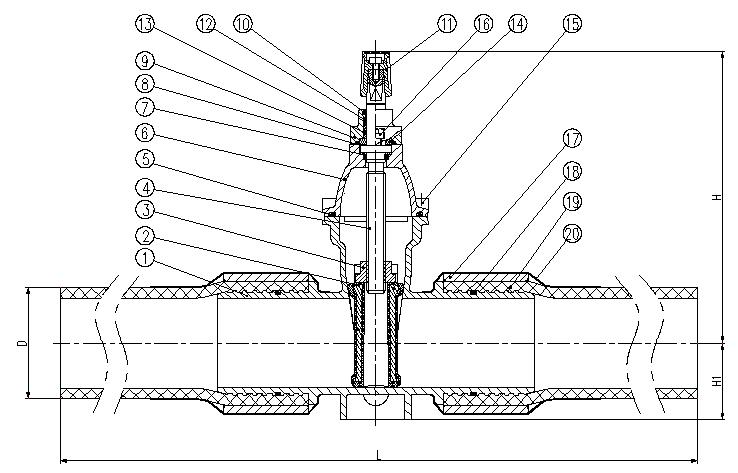

Components tree:

1	Body	Ductile Iron	BS500-7
2	Wedge	Ductile Iron	EPDM Encaps
3	Stem nut	Brass	C48600
4	Stem	Stainless Steel	1Cr17Ni2(431)
5	Bonnet gasket	Rubber	EPDM
6	Bonnet	Ductile Iron	BS500-7
7	Washer	Plastic	POM
8	O-ring	Rubber	NBR
9	Gland	Stainless Steel	316(CF8M)
10	Dust seal	Rubber	EPDM
11	Stem cap	Ductile Iron	BS500-7
12	Seal retainer	Plastic	POM
13	Stem seal	Rubber	NBR
14	Washer	Brass	C48600
15	Bonnet bolt	Stainless Steel	316
16	Gland bolt	Stainless Steel	316
17	Sleeve	Steel	#45
18	O-ring	Rubber	NBR
19	Pipe	Plastic	Polyethylene
20	Shrink hose	Plastic	Polyethylene

Reference nos. and dimensions:

BETTA ref. no.	DN mm	Outside Diameter of PE Pipe mm	H mm	H1 mm	L mm	Theoretical Weight/Kg
80ASZ82X1-16Q-PE90	80	90	308	62	890	14
100ASZ82X1-16Q-PE125	100	125	340	87	1095	22
150ASZ82X1-16Q-PE180	150	180	450	110	1070	40
250ASZ82X1-16Q-PE250	250	250	650	155	1310	90
250ASZ82X1-16Q-PE280	250	280	650	170	1310	105
300ASZ82X1-16Q-PE315	300	315	780	200	1320	140
