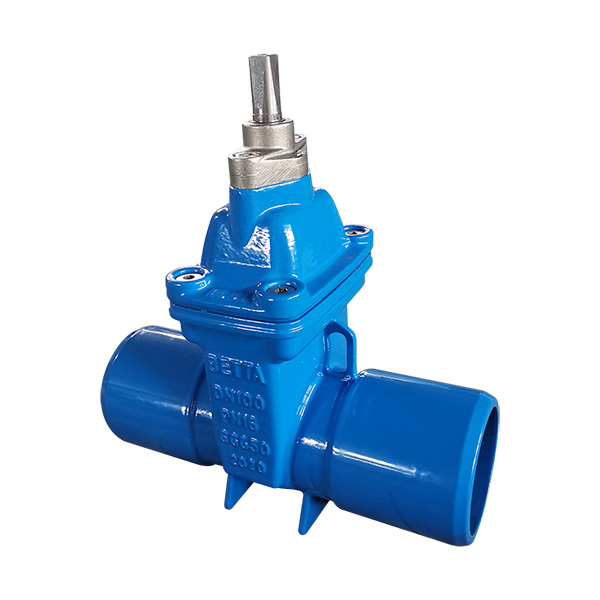

Spigot ends gate valve to AS2638.2. For drinking water and neutral liquids to max. 40℃

ASZ82X1-16Q: Connection; Spigot Ends; Material; Ductile Iron; DN; DN100~150; PN; PN16; Closing Direction; Clockwise to Close; Anti-Clockwise to Close

Test/Approvals:

Hydraulic test according to AS2638.2-2011
Seat: 1.1PN, Body: 1.5PN
Closing torque test to AS2638.2 Table5.1
AS2638.2 Registration No. 25731
WaterMark Registration No. 25731

Standards:

Designed and certified according to AS2638.2-2011
Spigot dimensions according to AS/NZS2280

Features:

Ductile iron grade of BS500-7 body and bonnet for high strength and impact resistance
Wedge fully vulcanized with drinking water approved EPDM rubber and equipped with slide shoes to provide smooth operation
Wedge and body guide rails ensure stable operation
Stainless steel 431 stem and rolled threads for high strength
O-ring stem seals replaceable under allowable working pressure
Straight through full bore
Low operating torque
Fusion bonded epoxy coating to AS4158&4020, WRAS, AS, DIN approved
Body/bonnet bolts sealed with hot melt
All fasteners of S.S.316 for corrosion resistance

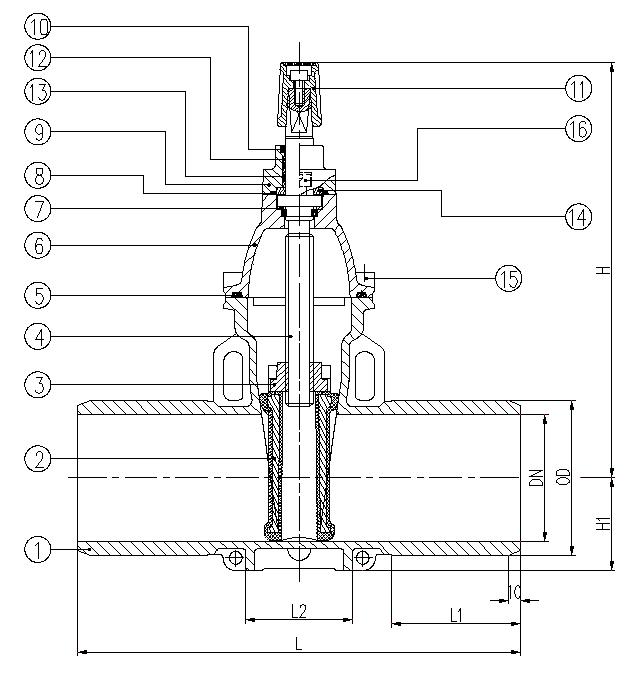

Components tree:

1	Body	Ductile Iron	BS500-7
2	Wedge	Ductile Iron	EPDM Encaps
3	Stem nut	Stainless Steel	C48600
4	Stem	Stainless Steel	1Cr17Ni2(431)
5	Bonnet gasket	Rubber	EPDM
6	Bonnet	Ductile Iron	BS500-7
7	Washer	Plastic	POM
8	O-ring	Rubber	NBR
9	Gland	Stainless Steel	316(CF8M)
10	Dust seal	Rubber	EPDM
11	Stem cap	Ductile Iron	BS500-7
12	Seal retainer	Plastic	POM
13	Stem seal	Rubber	NBR
14	Wahser	Brass	C48600
15	Bonnet bolt	Stainless Steel	316(CF8M)
16	Gland bolt	Stainless	316(CF8M)

Reference nos. and dimensions:

BETTA ref. no.	DN mm	Outside Diameter of D.I. Pipe mm	H mm	H1 mm	L mm	L1 mm	L2 mm	Theoretical Weight/Kg
100ASZ82X1-16Q	100	122 (+1, -2)	340	90	345±2	102±1.5	80	20
150ASZ82X1-16Q	150	177 (+1, -2)	450	115	365±2	102±1.5	104	38
