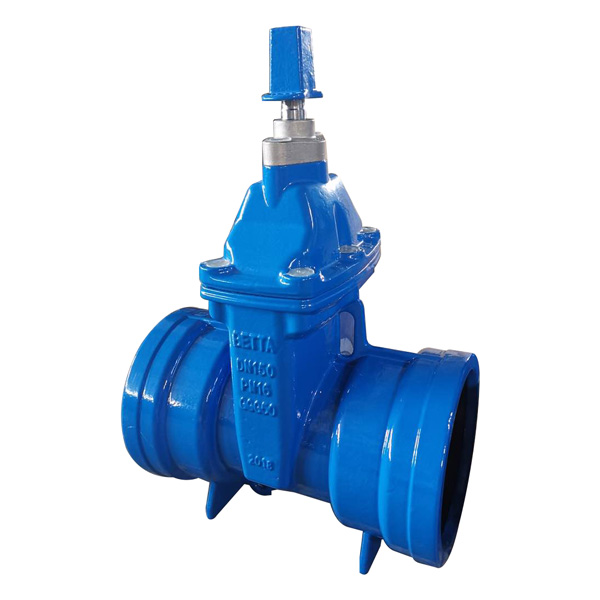

Socket ends gate valve to AS2638.2. For drinking water and neutral liquids to max. 40℃

ASZ52X1-16Q: Connection; Socket Ends; Material; Ductile Iron; DN; DN100~375; PN; PN16; Closing Direction; Clockwise to Close; Anti-Clockwise to Close

Test/Approvals:

Hydraulic test according to AS2638.2-2011
Seat: 1.1PN, Body: 1.5PN
Closing torque test to AS2638.2 Table5.1
AS2638.2 Registration No. 25731
WaterMark Registration No. 25731

Standards:

Designed and certified according to AS2638.2-2011
Socket dimensions according to AS/NZS2280 and combined with Series 2-PN35 Ductile iron pipe ring

Features:

Ductile iron grade of BS500-7 body and bonnet for high strength and impact resistance
Wedge fully vulcanized with drinking water approved EPDM rubber and equipped with slide shoes to provide smooth operation
Wedge and body guide rails ensure stable operation
Stainless steel 431 stem and rolled threads for high strength
O-ring stem seals replaceable under allowable working pressure
Straight through full bore
Low operating torque
Fusion bonded epoxy coating to AS4158&4020, WRAS, AS, DIN approved
Body/bonnet bolts sealed with hot melt
Option of Flange plus Socket connection
Option of Weight Reduced type of Series2 100~200mm valves
All fasteners of S.S.316 for corrosion resistance

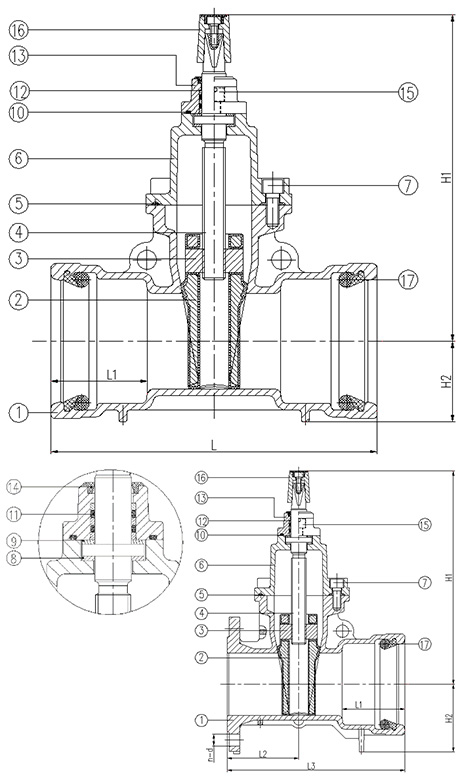

Components tree:

1	Body	Ductile Iron	BS500-7
2	Wedge	Ductile Iron	EPDM Encaps
3	Stem nut	Aluminum Bronze	C95210
4	Stem	Stainless Steel	1Cr17Ni2(431)
5	Bonnet gasket	Rubber	EPDM
6	Bonnet	Ductile Iron	BS500-7
7	Bonnet bolt	Stainless Steel	316(CF8M)
8	Washer	Plastic	POM
9	Wahser	Aluminum Bronze	C95210
10	O-ring	Rubber	NBR
11	Stem seal	Rubber	NBR
12	Seal retainer	Plastic	POM
13	Gland	Stainless Steel	316(CF8M)
14	Dust seal	Rubber	EPDM
15	Gland bolt	Stainless	Steel 316(CF8M)
16	Stem cap	Ductile Iron	BS500-7
17	Series2 PN35 ring	Rubber	EPDM

Reference nos. and dimensions:

BETTA ref. no.	DN mm	Outside Diameter of D.I. Pipe mm	H1 mm	H2 mm	L mm	L1 mm	L2 mm	L3 mm	Theoretical Weight/Kg
100ASZ52X1-16Q	100	122 (+1, -2)	340	84	410	135	114.5	320	23
150ASZ52X1-16Q	150	177 (+1, -2)	450	115	463	150	133.5	365	42
200ASZ52X1-16Q	200	232 (+1, -2)	580	144	556	170	146	424	70
225ASZ52X1-16Q	225	259 (+1, -2)	670	158	477	135	152.5	391	84
250ASZ52X1-16Q	250	286 (+1, -2)	670	172	482	144	165	397	90
300ASZ52X1-16Q	300	345 (+1, -2)	780	203	520	144	178	438	110
375ASZ52X1-16Q	375	426 (+2, -2)	1010	250	600	175	-	-	275
100ASZ52X1-16Q-2 Weight Reduced	100	122 (+1, -2)	310	86.5	342	100	114.5	270	20
150ASZ52X1-16Q-2 Weight Reduced	150	177 (+1, -2)	410	117	372	105	133.5	320	36
200ASZ52X1-16Q-2 Weight Reduced	200	232 (+1, -2)	460	144	456	122	-	-	63
